EP Series 2 Poles Distributor


EP Series 2 Poles Distributor

EP Series 2 Poles Distributor

Category:Electronic Components
Sub-Category:Cables And Wiring Components
Nationality:Make In India
Price:As per client

Product Description:

Applicable Condition And Product Materials

Rated Voltage 450V AC

Rated Impulse Voltage

 2500V
Contact Resistance ≤10mΩ
Insulantion Resistance ≥500MΩ
Cable Retention Force OD:5.5~9.0,F≥80N; OD:9~12,F≥100N; OD:12~12.5,F≥120N;
Termination Screw Clamp
Protection Dergree IP68 1m-1H
Working Temperature -40℃ ~ +85℃
Material of Housing PA66 and PA66 30% GF
Material of Contacts Copper Alloy with Ni Plating
Standard According to EN61984 / EN60998-1 2004 / EN60998-2-1 2004 / EN62444 2013 / CQC 1101-2011 / UL2238 / UL 1977

EP Connector Series Female Cable End (Mating to Male Panel Mount Connector)
symbol

EP Connector Series Fe

EP Terminal Sealing Cap - Internal Thread
symbol

EP Terminal Sealing Ca

EP Connector Series Male Cable End
symbol

EP Connector Series Ma

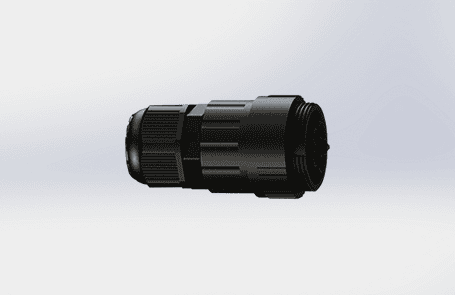

EP Connector Series Female Cable End
symbol

EP Connector Series Fe

Cable Seal
symbol

Cable Seal

EP Connector Series Male Panel Mount
symbol

EP Connector Series Ma

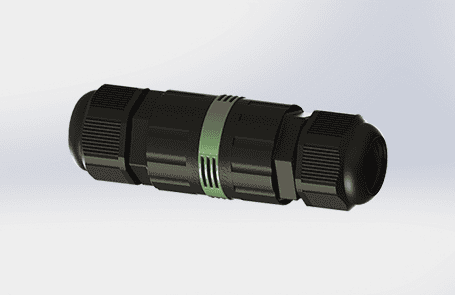

EP Waterproof Terminal
symbol

EP Waterproof Terminal

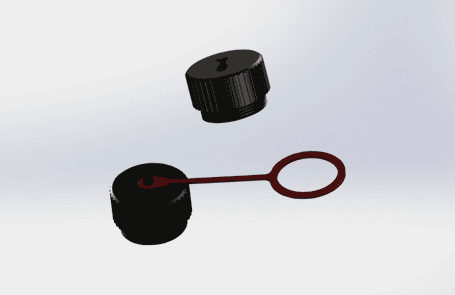

EP Connector Sealing Cap - External
symbol

EP Connector Sealing C

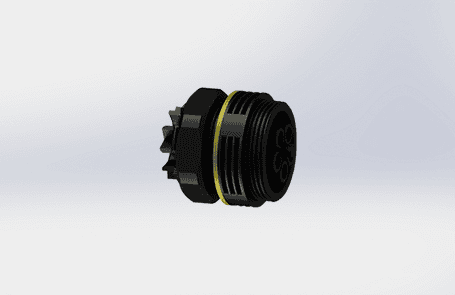

EP Connector Series Female Pannel Mount - Back Locking
symbol

EP Connector Series Fe

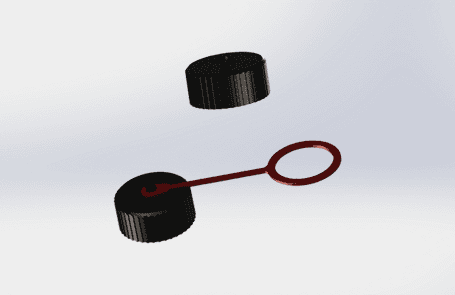

Sealing Cap - Internal Thread
symbol

Sealing Cap - Internal
