Technical Data
| S.NO. | Description | Specifications |
|---|---|---|
| 1 | Short Circuit Level | 65 KA For 1 Sec |
| 2 | Ingression Protection (IP) | IP -55 Verified by CPRI |
| 3 | Type Of Construction | Bolted |
| 4 | Material Of Enclosure | CRCA |
| 5 | Type Of Control Wire | FR-ISI Marked |
| 6 | Power Terminaly | Disconnected Type |
| 7 | Control Terminals | Stud Type |
| 8 | Cable Tie Arrangement For Customer Cable | Slotted Channel |

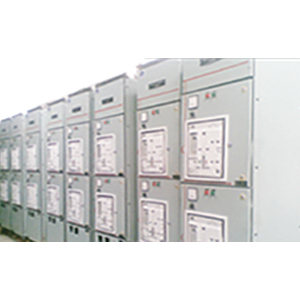

Power Control Centre

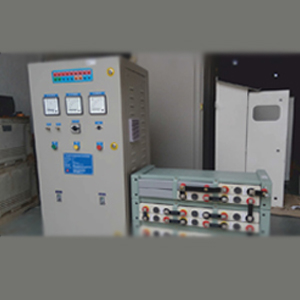

VRLA Type Battery With FCB Charger
| S.NO. | Description | Specifications |
|---|---|---|
| 1 | Ingression Protection (IP) | IP - 55 Verified By CPRI |
| 2 | Input Voltage Range | 180-300V AC (IP) / 415V (3ø) |
| 3 | Output Voltage Range | 24/30/48/110/220V DC thyristor controlled |
| 4 | Major Alarm / Annuncitaion | Charger Fail/Under Voltage / Battery Disconnect/Revers Polarity |
| 5 | Capacity | 45Ah/ 100Ah/200Ah/ 600Ah Lead/Ni-cd Battery |
| S.NO. | Description | Specifications |
|---|---|---|
| 1 | Ingression Protection (IP) | IP -55 Verified by CPRI |
| 2 | Type Of Construction | Bolted |
| 3 | Material Of Enclosure | CRCA |
| 4 | Type Of Control Wire | FR-ISI Marked |
| 5 | CT Terminals | Disconnect Type |
| 6 | Control Terminals | Stud Type |
| 7 | Arrangement for Customer Cable | PVC Channel |
| 8 | Relay Protocol | IEC -61850 |

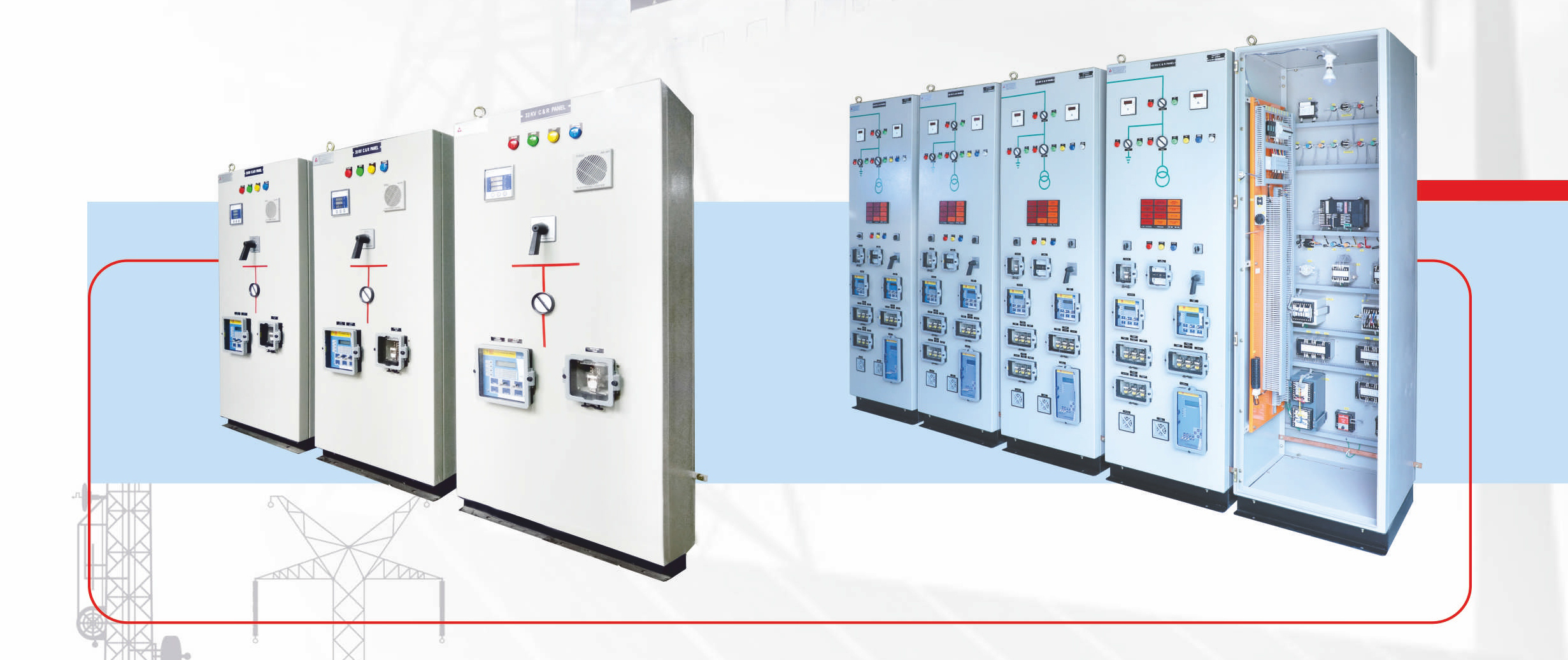

Control & Relay Panel
